Heat Exchanger Thermal Efficiency: Which Operating Parameters Matter Most?

Why does heat exchanger thermal efficiency get so much attention?

Heat exchanger thermal efficiency sits at the center of energy use, temperature stability, and operating cost.

That is true in industrial HVAC, cold-chain rooms, process cooling loops, and many building service systems.

In simple terms, efficiency reflects how well a heat exchanger moves heat from one medium to another without wasting pumping power, space, or maintenance effort.

The reason this matters is practical.

A unit can look adequate on paper, yet underperform once flow conditions drift, fouling develops, or approach temperatures tighten.

Across the sectors tracked by G-TSI, benchmarking heat exchanger thermal efficiency is rarely about one number alone.

It is usually about how operating parameters interact under real loads, climate stress, and compliance requirements such as ASHRAE, ISO, and EN references.

That leads to a common question: which operating parameters matter most, and which ones are often misunderstood?

Which operating parameters usually have the biggest effect?

Several variables influence heat exchanger thermal efficiency, but they do not carry equal weight.

In most systems, the strongest drivers are temperature difference, flow rate, fluid properties, fouling condition, and pressure drop limits.

Temperature difference is the first place to look.

If the log mean temperature difference is too small, heat transfer falls even when exchanger surface area appears sufficient.

Flow rate comes next, but more flow is not automatically better.

Higher velocity can improve turbulence and transfer coefficients, yet it also raises pressure drop, pump energy, and erosion risk.

Fluid properties matter because viscosity, specific heat, density, and thermal conductivity change how heat moves through the exchanger.

A glycol loop, for example, behaves very differently from water at the same nominal temperature.

Fouling deserves special attention.

Even a well-sized exchanger can lose heat exchanger thermal efficiency quickly when scale, oil film, ice, or biological buildup creates extra thermal resistance.

Pressure drop is often treated as a secondary issue, but that is a mistake.

A design that chases thermal performance while ignoring pressure constraints may increase total system energy rather than reduce it.

A quick judgment table helps separate major from minor factors

The table below summarizes how common operating parameters affect heat exchanger thermal efficiency in day-to-day evaluation.

Is temperature difference more important than flow rate?

This is one of the most searched heat exchanger questions, and the honest answer is: usually yes, but not in isolation.

A stronger temperature gradient gives heat a clearer path to move.

Without that driving force, increasing flow can only recover part of the loss.

In actual applications, the better way to compare them is to ask what constraint the system faces.

If outlet temperature targets are very tight, temperature difference usually dominates.

If the exchanger is suffering from laminar flow or poor distribution, flow adjustment may unlock a meaningful improvement.

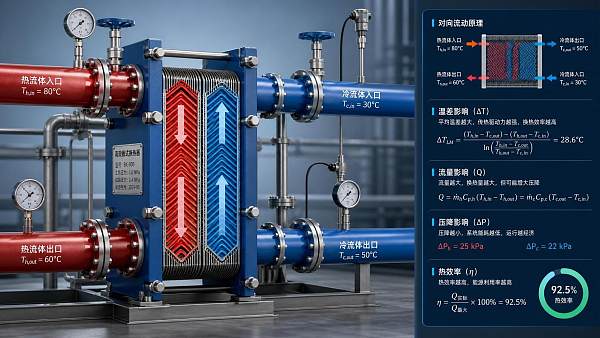

Counterflow arrangements often support better heat exchanger thermal efficiency than parallel flow arrangements because they preserve a stronger average temperature driving force.

That design choice matters in district cooling, chilled water plants, cryogenic support systems, and packaged modular thermal units.

A common mistake is to rate exchangers only at design peak.

More useful benchmarking looks at part-load behavior, because that is where many facilities spend most operating hours.

How do fluid properties and fouling change real performance?

Real performance often drifts for reasons that do not appear in simple nameplate comparisons.

Fluid properties are a major reason.

As viscosity rises, turbulence can fall, boundary layers become thicker, and heat exchanger thermal efficiency drops.

That is especially relevant in food processing, pharmaceutical cooling, low-temperature brine systems, and seasonal HVAC operation.

Specific heat also matters because it affects how much energy the fluid can carry for each degree of temperature change.

Then there is fouling, which tends to be underestimated during early selection.

Mineral scale, suspended solids, oil contamination, and biofilm can reduce effective heat transfer far sooner than expected.

In cold-chain infrastructure, frost formation can behave like a fouling layer even when fluid chemistry is well controlled.

The practical lesson is straightforward.

• Check fluid properties at actual operating temperature, not just at room conditions.
• Include realistic fouling allowances instead of ideal clean-surface assumptions.
• Review cleaning method, service interval, and downtime impact before final comparison.

This is why G-TSI-style benchmarking tends to compare installed behavior, not just catalog performance.

Which operating mistakes usually reduce heat exchanger thermal efficiency?

The most common losses come from controllable operating habits rather than from catastrophic equipment failure.

One frequent issue is oversized expectation and undersized control.

When valves, pumps, and control logic are not tuned for the exchanger, flow distribution becomes unstable and useful transfer area is not fully used.

Another issue is chasing low outlet temperatures without checking pressure penalties.

That can make the exchanger look thermally stronger while the full system becomes less efficient.

Poor instrumentation is another blind spot.

If sensors are inaccurate, badly placed, or rarely calibrated, heat exchanger thermal efficiency may appear to decline when the real problem is faulty data.

There is also a timing problem.

Cleaning is often scheduled too late, after energy use and temperature deviation have already climbed.

A more disciplined review usually includes these checks:

• Compare design flow with actual seasonal flow bands.
• Track pressure drop trends together with thermal approach.
• Separate fouling symptoms from control instability.
• Review part-load data before changing exchanger size or type.

How should efficiency be judged when comparing systems?

The right comparison method depends on whether the goal is design selection, retrofit review, or operating optimization.

For a first-pass assessment, it helps to compare thermal duty, approach temperature, pressure drop, fouling tolerance, and cleaning access together.

Looking at only one performance figure can distort the decision.

That is especially true in integrated environments such as high-load HVAC plants, refrigerated warehouses, modular process rooms, and resilient urban infrastructure.

A compact exchanger with strong clean-condition ratings may be less suitable if water quality is unstable or maintenance windows are short.

The opposite can also happen.

A more conservative design may deliver better lifecycle heat exchanger thermal efficiency because it stays closer to target under variable conditions.

The judgment matrix below is useful when comparing options.

What is the best next step if performance needs to be verified?

Start with operating data, not assumptions.

Collect inlet and outlet temperatures, flow rates, pressure drop, fluid composition, and cleaning history for normal and stressed conditions.

Then compare actual duty against expected duty at the same boundary conditions.

If the gap is wide, identify whether the main cause is low temperature driving force, weak flow regime, fouling, or control mismatch.

For broader system comparisons, heat exchanger thermal efficiency should be reviewed alongside maintenance access, cleaning frequency, and total energy consumption.

That approach is more useful than treating the exchanger as an isolated component.

In practical terms, the strongest decisions usually come from a short checklist:

• Define the real load profile and target outlet temperatures.
• Check fluid behavior across the full temperature range.
• Set acceptable pressure drop before comparing options.
• Include fouling and maintenance in lifecycle evaluation.
• Use benchmark methods aligned with recognized standards.

That is the clearest way to judge which operating parameters matter most for a specific application, rather than in theory alone.
